SM420G With KKK RD390

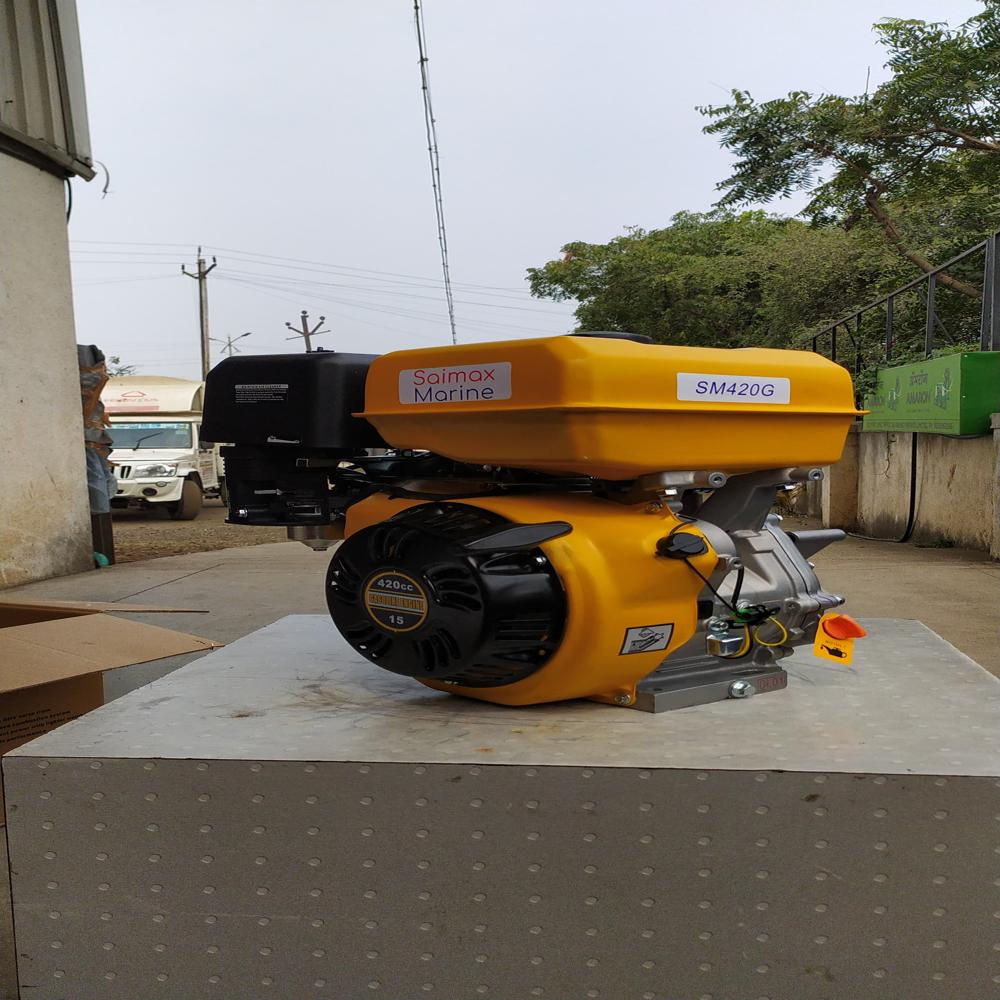

Name: SM420G With KKK RD390
Brand: SAIMAX MARINE & AGRO SOLUTIONS
Price: 53240.0 INR
Availability: InStock

Price 53240.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

SM420G With KKK RD390 Specification

Thickness
Reinforced Cylinder Wall

Other Features
Heavy Duty Design, High Reliability, Pull Start

Engine Type
Gasoline, OHV

Outlet Diameter
Standard size for marine fitment

Thread size
Standard Spark Plug Thread

Finish Type
Powder Coated

Lubrication Type
Splash Lubrication

Automation Grade
Manual

Mount Type
Base Mount

Usage
Marine, Agriculture, Industrial Engines

Frequency
N/A (Not an electrical generator)

Cooling System
Air Cooled

Fuel Type
Petrol/Gasoline

Inner Diameter
Bore 90mm

Condition
Brand New

Mounting Type
Horizontal Shaft, Base Mount

Material Grade
High-grade Engineering Alloy

Load Capacity
Suitable for 15 HP Load

Power Output
15 HP @ 3600 RPM

Efficiency
High Fuel Efficiency

RPM
3600 RPM Max

Product Type
Single Cylinder 4-Stroke Engine

Parts Name
SM420G With KKK RD390

Material
Aluminum Alloy & Steel

Application
Marine/Industrial/General Purpose

OE Number
SM420G

Size
420cc

Dimensions
Approx. 430mm x 380mm x 430mm

Weight
Approx. 28 kg

Power
15 HP

Stroke
4-Stroke

Head
Single Cylinder

Compression Ratio
8.0:1

Drive Type
Horizontal Shaft

Oil Capacity
1.1 Liters

Noise Level
Low Noise Emission

Emission Compliance
Meets Standard Regulatory Norms

Ignition System
Transistorized Magneto

Carburetor Type
Float Type

Max Torque
25 Nm @ 2500 RPM

Packaging
Standard Export Box

Engine Displacement
420cc

Starting System
Recoil (Manual) Starter

Fuel Consumption
Approx. 2.5 L/hr at 3600 RPM under full load

Air Filter
Dual Element

Suitable For
Boats, Water Pumps, Generators, Agriculture Machinery

Fuel Tank Capacity
6.5 Liters

Governor System
Centrifugal Mechanical Governor

Exhaust
Standard Silencer Included

Color
Yellow/Black

SM420G With KKK RD390 Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

SM420G With KKK RD390 About

Fuel Type	Petrol
Power Rating	15 hp
Number Of Cylinders	Single Cylinder
Cooling System	Air Cooled
Starting System	Recoil Start
Application	Marine
Engine Speed	1800 rpm
Engine Type :	Single Cylinder 4 Stroke (OHV) 1/2 Geared Down
Bore X Stroke :	90 X 66mm
Displacement :	420cc
Compression Ratio :	9.0 : 1
Net Power :	9.7kw / 1800rpm
Net Torque :	58N.m / 1250rpm
PTO Shaft Rotation :	Counterclockwise ( Horizontal Shaft Output )
Ignition System :	Transistorized Magneto Ignition
Lubrication System :	Forced Splash
Carburetor :	Flat Suction Valve Carburetor
Governor System :	Centrifugal Mechanical
Air Cleaner:	Dual Element ( Paper And Foam )
Oil Capacity :	1.1L
Fuel Tank Capacity :	6.5L
Dimension ( L x W x H ):	456 x 415 x 440mm
Net Weight :	35.5Kg
Fuel Consumption :	374g/kw /hr
View in Hindi	SM420-G 1800rpm 4 ( )

Engine Purpose ---

1) Longtail Outboard Engine ---
2) Inboard Boat Engine ---
3) Hydraulic Power Pack ---

Heavy-Duty Reliability for Multiple Applications

Designed to deliver consistent power, the SM420G With KKK RD390 is perfect for demanding marine, agricultural, and industrial applications. Its heavy-duty construction and reinforced components guarantee resilience in tough environments, while the advanced cooling and lubrication systems ensure efficient, uninterrupted use.

Optimized Fuel Efficiency and Performance

With a fuel consumption rate of approximately 2.5 liters per hour at full load and high compression ratio, this engine balances performance with economy. The transistorized magneto ignition and float-type carburetor provide smooth starts and optimal fuel mixture, enhancing power output and reducing operational costs.

User-Friendly Operation and Maintenance

Starting the engine is hassle-free with a recoil manual starter, supported by a straightforward centrifugal mechanical governor system. Maintenance is simplified due to accessible components, dual-element air filtration, and splash lubrication, making it easy for users in various fields to keep the engine running efficiently.

FAQ's of SM420G With KKK RD390:

Q: How do I start the SM420G With KKK RD390 engine?

A: The engine features a recoil (manual) starter system. To start, simply pull the starter cord firmly, ensuring the fuel supply is turned on and the choke is set appropriately based on engine temperature.

Q: What are the primary benefits of the SM420G With KKK RD390 for marine and agricultural use?

A: This engine offers reliable 15 HP power, high fuel efficiency, and low noise emission, making it suitable for boats, water pumps, generators, and agricultural machinery. Its durable components and robust design ensure performance in demanding conditions.

Q: When should I perform routine maintenance on this engine?

A: Check the oil level before each use and change the engine oil after the first 20 hours, then every 50 hours of operation. Clean or replace the air filter as needed, especially in dusty or dirty environments.

Q: Where can the SM420G With KKK RD390 engine be installed?

A: It is designed with a horizontal shaft and base mount, making it adaptable for installation in boats, pumps, generators, and other industrial and agricultural equipment requiring up to 15 HP output.

Q: What is the recommended process for fueling and oiling the engine?

A: Use regular petrol/gasoline for fueling. Fill the fuel tank up to 6.5 liters, and maintain oil levels at 1.1 liters using recommended grade engine oil. Always check oil and fuel levels before operation for optimal performance.

Q: How does the engine guarantee low noise and emission compliance?

A: The standard silencer and advanced combustion control in the magneto ignition system work together to minimize noise and meet standard regulatory norms for emissions, ensuring eco-friendly and quiet operations.

Q: What materials contribute to the engine's longevity and reliability?

A: Constructed from high-grade engineering aluminum alloy and steel, the engine features a reinforced cylinder wall, powder-coated finish, and durable components to withstand tough environments and extend operational life.
