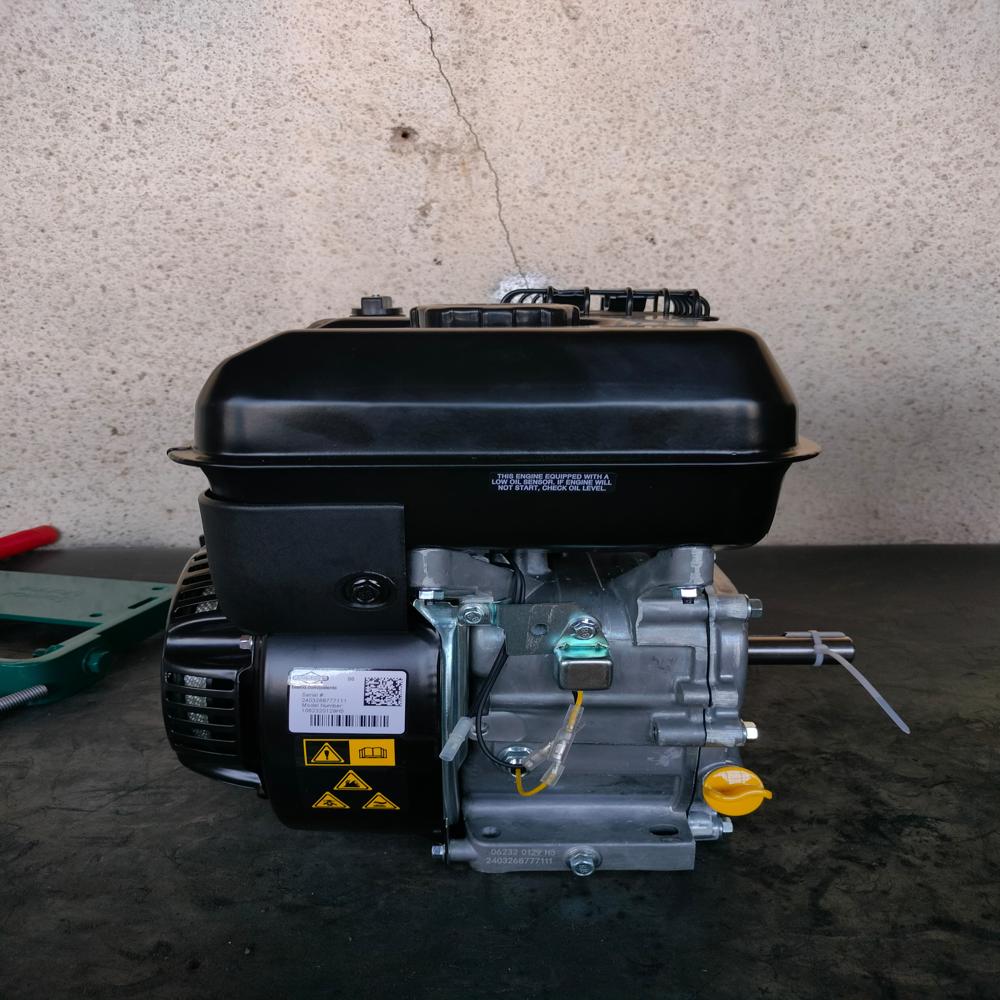

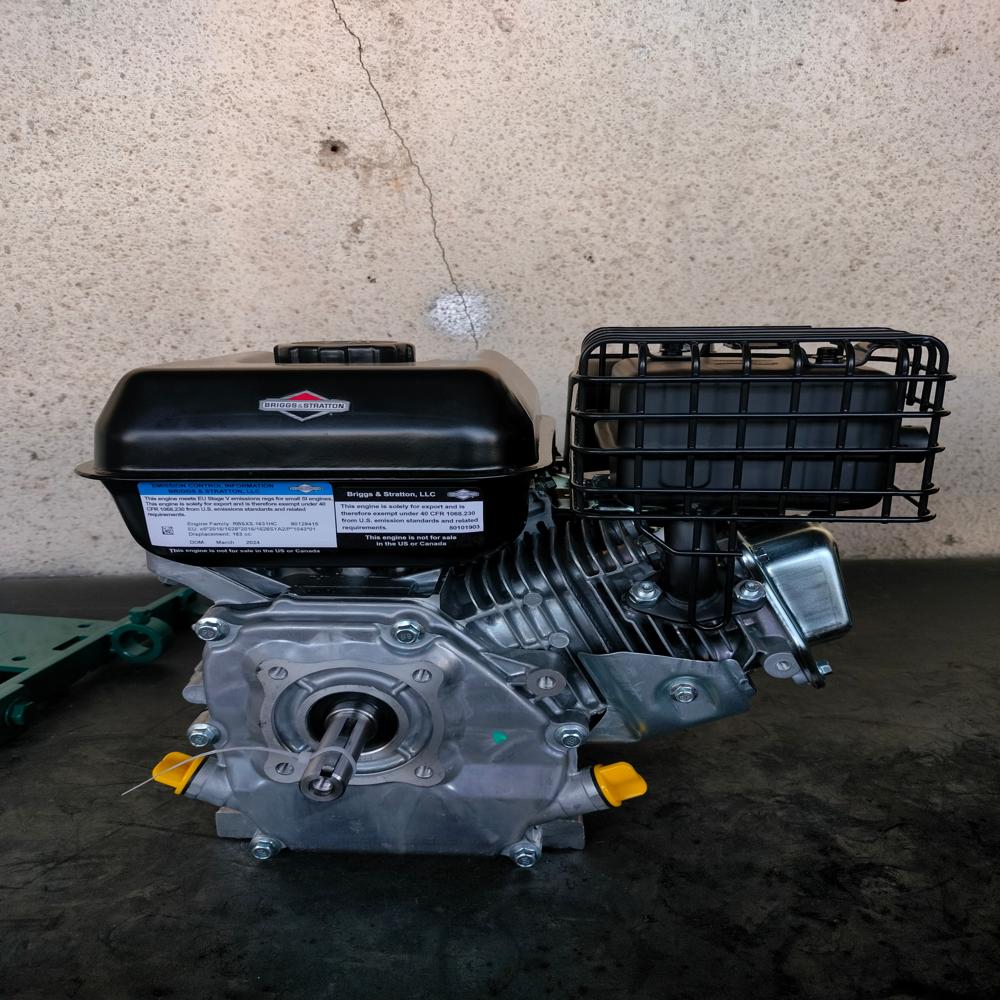

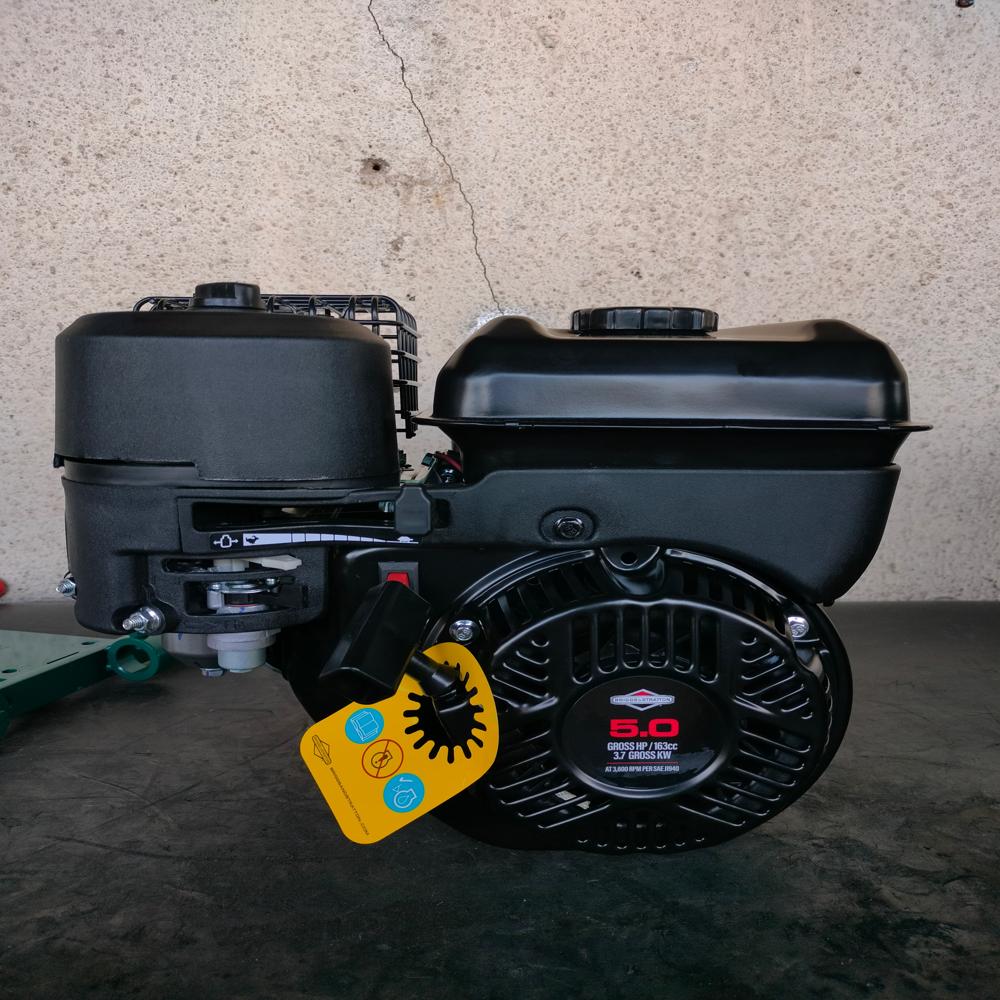

XR5.0 HP

Name: XR5.0 HP
Brand: SAIMAX MARINE & AGRO SOLUTIONS
Price: 17912.0 INR
Availability: InStock

Price 17912.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

XR5.0 HP Specification

Finish Type
Factory Finish with Black Painted Tank

Thread size
Standard Shaft Thread

Lubrication Type
Splash Lubrication

Mounting Type
Horizontal Shaft

Condition
Brand New

Mount Type
Base Mounting Bolt Pattern

Usage
General Purpose Power Source

Cooling System
Air Cooled

Material Grade
High Performance Alloy

Efficiency
High Fuel Efficiency

Engine Type
4-Stroke, Single Cylinder

Other Features
Low Oil Shutdown, Easy Start System

Load Capacity
Suitable up to 5HP Load Applications

Fuel Type
Petrol (Gasoline)

RPM
3600 rpm

Outlet Diameter
20mm Shaft Diameter (Approx.)

Power Output
Approx. 3.7 kW

Automation Grade
Manual Start

Product Type
Horizontal Shaft Petrol Engine

Parts Name
Engine XR5.0 HP

Material
Aluminum Alloy (Engine Block)

Application
Power Equipment, Water Pumps, Generators, Agricultural Machinery

OE Number
XR5.0HP

Size
Standard Engine Size

Dimensions
Approx. 303mm (L) x 376mm (W) x 335mm (H)

Weight
Approx. 15 kg

Power
5 Horsepower (HP)

Stroke
4-Stroke

Head
Single Cylinder

Crankshaft Type
Keyed, Threaded End (for Attachments)

Fuel Consumption
Approx. 1.4 L/hr @ 3600 rpm (50% Load)

Noise Level
Approx. 72 dB(A) @ 7m

Exhaust
Muffler with Spark Arrestor

Air Filter Type
Dual Element Foam Filter

Recommended Oil Type
SAE 10W-30 or Equivalent

Governor System
Mechanical Governor

Displacement
208 cc

Fuel Tank Capacity
3.1 Liters

Starting System
Recoil Starter

Emission Compliance
EPA/CARB Certified

Oil Capacity
0.6 Liters

Compression Ratio
8.5:1

Ignition System
Transistorized Magneto (Electronic Ignition)

XR5.0 HP Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

XR5.0 HP About

Model Number - 1062

RPM - 3600

Horsepower (HP, gross)* - 5.0

Gross Power( kw) - 3.7

Torque (ft-lbs, gross)* - 7.5

Engine Displacement (cc) - 163

Number of Cylinders - Single

Engine Configuration - Horizontal Shaft

OHV Engine - true

Length (mm) - 268

Width (mm) - 368

Height (mm) - 342

Weight (Kg) - 15.5

Bore (mm) - 68

Stroke (mm) - 45

Engine Fuel - Gasoline

Fuel Tank Capacity (L) - 3.1

Fuel Consumption - 0.700 L

Lubrication System - Dura-Lube Splash Lubrication

Oil Capacity (L) - 0.6

Oil Filter - N/A

Start - Manual Choke

Air Filter - Flat Panel or Dual Element Cartridge

Muffler - Lo-Tone

Crank Size - 19.05 mm

Durable and Efficient Performance

The XR5.0 HP engine's robust design ensures consistent output and longevity, making it ideal for demanding environments. The mechanical governor, aluminum alloy engine block, and high-performance alloy materials contribute to efficient power delivery, while the air-cooled system provides reliable temperature control for prolonged usage in various conditions.

Versatile Power Solution

Engineered with compatibility and flexibility in mind, the XR5.0 HP suits a range of power equipment, including water pumps, generators, and agricultural tools. Its keyed, threaded crankshaft supports easy attachment, and its base mounting bolt pattern simplifies installation on different machinery. The engine's emission compliance and low-noise operation make it suitable for commercial as well as rural settings.

FAQ's of XR5.0 HP:

Q: How do I start the XR5.0 HP engine?

A: The XR5.0 HP engine is equipped with a recoil starting system. Simply pull the recoil starter handle briskly after turning on the ignition, ensuring fuel and oil levels are adequate before starting.

Q: What type and amount of oil should I use for this engine?

A: It is recommended to use SAE 10W-30 engine oil or an equivalent. The oil capacity for the XR5.0 HP is 0.6 liters. Regularly check and maintain the oil at proper levels to ensure optimal performance and longevity.

Q: When should I perform routine maintenance on the XR5.0 HP engine?

A: General maintenance such as checking the oil level, air filter, and fuel should be done before each use. More in-depth servicing, like changing oil and inspecting the spark plug, is suggested every 25-50 operational hours or according to the manufacturer's manual.

Q: Where is the XR5.0 HP engine best utilized?

A: This engine is versatile and can be used in a variety of power equipment, including water pumps, portable generators, agricultural machines, and any other application requiring a reliable 5 HP petrol engine.

Q: What benefits does the dual element foam air filter provide?

A: The dual element foam air filter effectively traps dust and debris, improving engine protection and prolonging operational life, especially in dusty or harsh environments.

Q: How does the engine's emission compliance affect its usage?

A: The XR5.0 HP is EPA/CARB certified, meaning it meets strict emissions standards for use in the USA and other regulated markets. This ensures reduced environmental impact and regulatory compliance for commercial applications.
