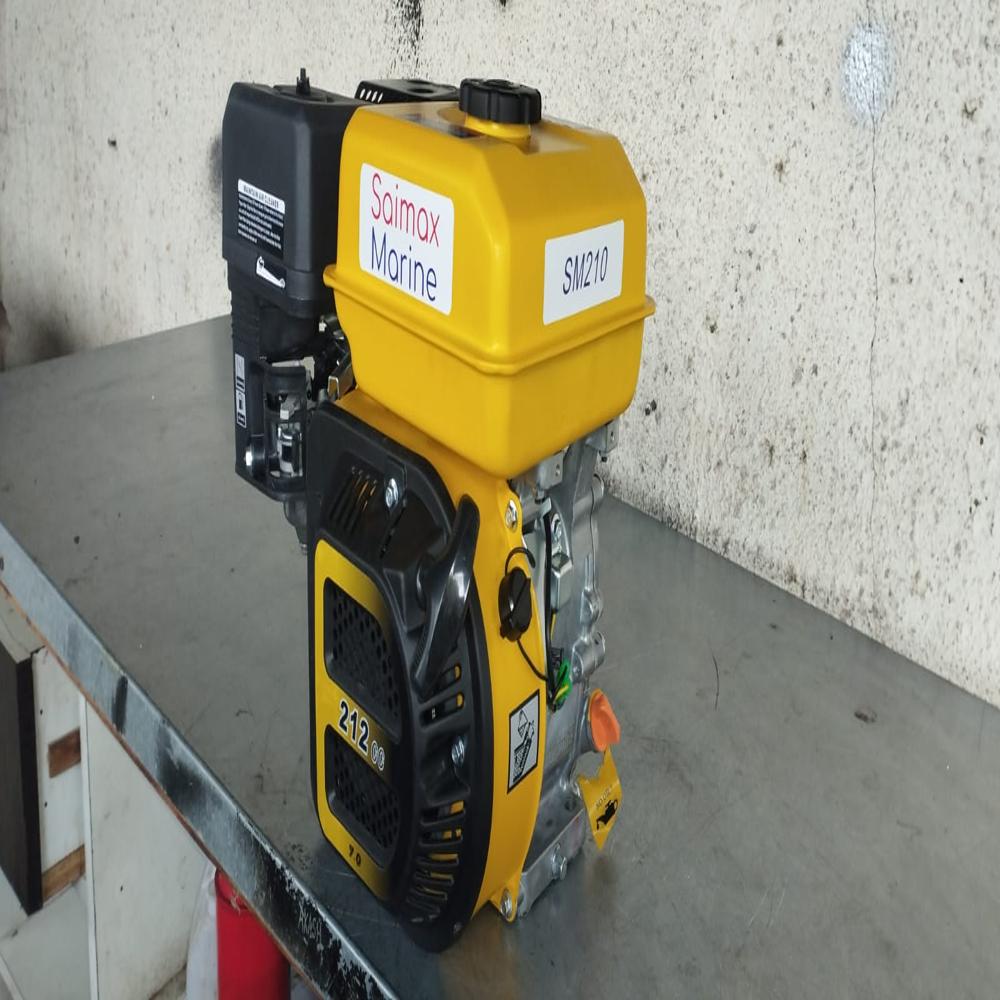

SM210Q With KKK MAC I

Name: SM210Q With KKK MAC I
Brand: SAIMAX MARINE & AGRO SOLUTIONS
Price: 34890.0 INR
Availability: InStock

Price 34890.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

SM210Q With KKK MAC I Specification

Equipment Type
Engine with KKK MAC I system

Capacity
212 cc

Operating Temperature
-10C to +40C

Usage & Applications
Marine, industrial, and general engine applications.

Application Areas
Boats, marine craft, machinery, generators

Product Type
Single Cylinder 4-Stroke Engine

Type
Petrol Engine

Material
Aluminium Alloy and Steel

Automatic Grade
Manual Start

Control System
Mechanical Governor

Drive Type
Direct Drive

Weight (kg)
Approx. 16-18 kg

Dimension (L*W*H)
Approx. 400 x 350 x 370 mm

Feature
Heavy-duty, durable, compact design, easy start system.

Size
Standard (custom sizing on request)

Surface Finishing
Powder Coated

Features
Powder coated finish, corrosion resistant, 212cc engine, recoil start, fuel efficient

Mounting Type
Base Mounted

Cooling System
Air Cooled

Horsepower
7 HP

Ignition System
Transistorized Magneto

Bore x Stroke
70mm x 55mm

Compression Ratio
8.5:1

Fuel Tank Capacity
3.6 Liters

Exhaust System
Silent Type Exhaust

Fuel Type
Unleaded Petrol

Maximum RPM
3600 rpm

Cylinder Arrangement
Single cylinder, Horizontal shaft

Mounting Footprint
Approx. 160 x 200 mm

Starting System
Recoil (Manual Pull Start)

Carburetor Type
Float Type

Oil Capacity
0.6 Liters

Lubrication System
Splash Type

Color
Yellow and Black

About SM210Q With KKK MAC I

Unlock towering performance and optimum reliability with the SM210Q featuring the exclusive KKK MAC I system. Engineered for clearance in demanding marine, industrial, and generator applications, this durable petrol engine delivers dominant power with a 7HP rating and 3600rpm maximum speed. Its compact, powder-coated design resists corrosion and is crafted from premium aluminium alloy and steel, ensuring long-lasting operation. The direct-drive mechanism enhances efficiency, while the silent exhaust system guarantees quieter usage. Enjoy easy, manual recoil start and fuel-efficient operation - perfect for those seeking quality and versatility.

Commercial Utility and Application Zone

SM210Q With KKK MAC I is designed for commercial sites including boats, marine craft, generators, and diverse machinery. Its base mounting allows secure placement, while optimum direction of use is ensured through mechanical governor control and horizontal shaft design. The engine's adaptability supports heavy-duty tasks in marine, industrial, and equipment environments, making it the go-to choice for demanding work applications.

Domestic Market, Shipment & Supply Ability

SM210Q With KKK MAC I serves the main domestic markets with quick order completion and efficient goods transport from FOB Port locations. Supply ability is robust, ensuring prompt shipment and reliable delivery for distributors, exporters, and wholesalers. The standardized footprint and consistent quality let customers experience smooth procurement and hassle-free fulfillment in every batch.

Fuel Type	Petrol
Power Rating	7HP
Number Of Cylinders	single
Cooling	Air Cooled
Displacement	212ml
Power	5 kw
Cooling System	Air Cooled
Application	boat
Starting System	Recoil start
Brand	saimax
Engine Speed	3600 rpm
Engine Type	single cylinder , 4 - strok(OHV)
Fuel Tank Capacity	3.60l
Governor System	centrifugal mechanical
Gross Weight	16.5 k g
Model Name/Number	SM 210 Q
Type	ohv
Net Power Output	4.4 kw/3600rpm
Bore x Stroke	70 x 55
Net Torque	12 n.m /2500rpm
Dimensions	390 x320 x 345 mm
Oil Capacity	550ml
RPM	3600

FAQ's of SM210Q With KKK MAC I:

Q: How does the SM210Q engine start?

A: The SM210Q With KKK MAC I features a recoil manual pull start system, allowing for simple and reliable ignition without the need for electric starters.

Q: What are the main commercial applications for the SM210Q engine?

A: This engine is primarily used in boats, marine craft, machinery, generators, and other industrial equipment, making it versatile across multiple heavy-duty sectors.

Q: When should oil be changed in this engine and what is its capacity?

A: The oil capacity is 0.6 liters (550ml). For optimum performance, oil should be changed after the first 20 hours of operation and subsequently every 100 hours or as recommended by the manufacturer.

Q: Where can the SM210Q engine be mounted?

A: The engine is base-mounted with a standardized footprint, making it suitable for installation in marine vessels, equipment frames, and generator platforms.

Q: What is the process for ordering and shipment?

A: Customers can place orders through distributors, exporters, or wholesalers. Goods are transported from FOB ports, ensuring order completion and efficient shipment to the proposed destination.

Q: How is the SM210Q engine cooled and what is its benefit?

A: The SM210Q utilizes an air-cooled system, providing effective heat dissipation for prolonged engine life and consistent operation under varying temperature ranges.
