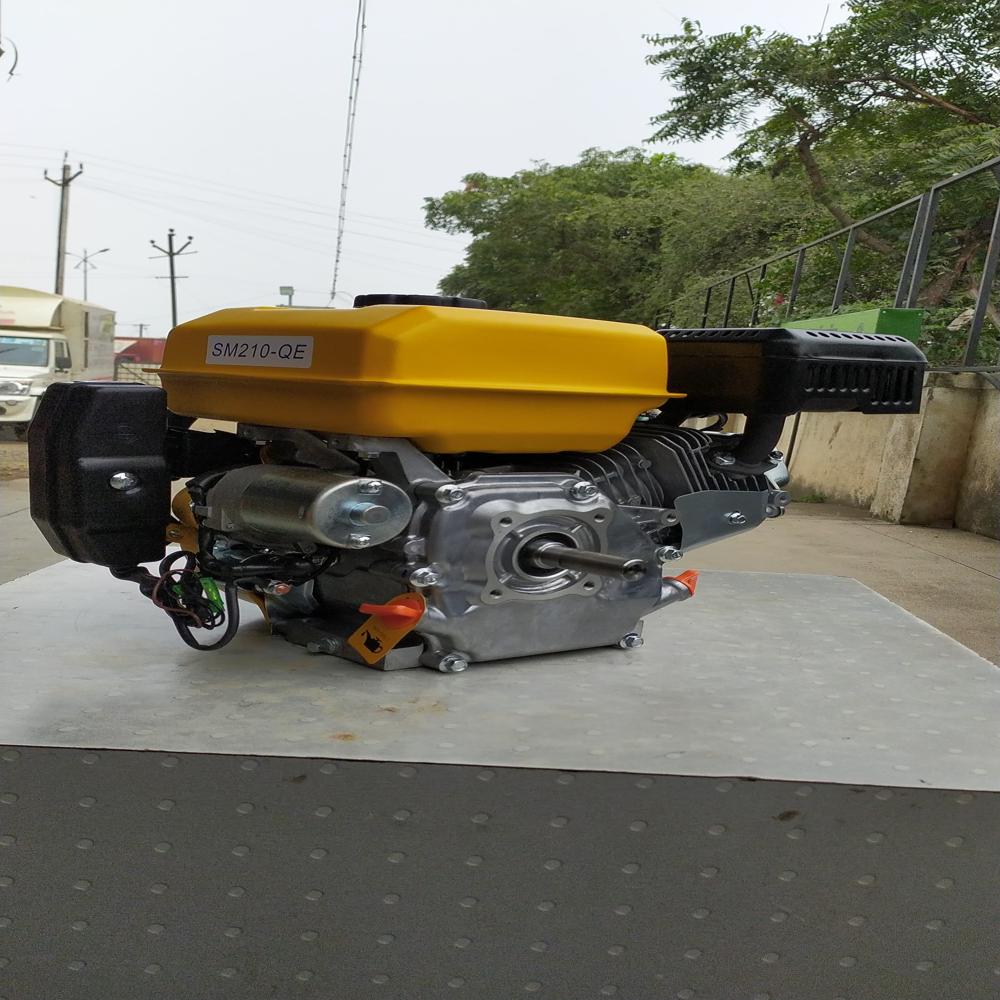

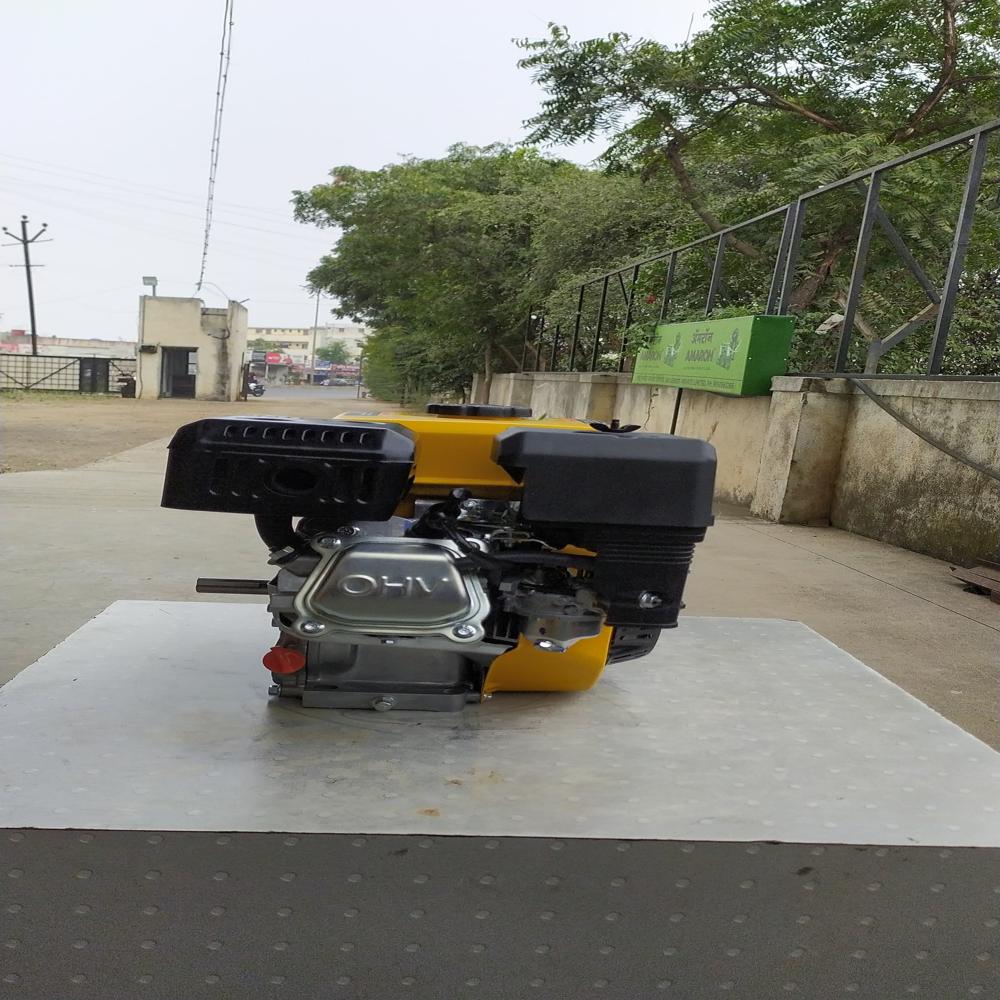

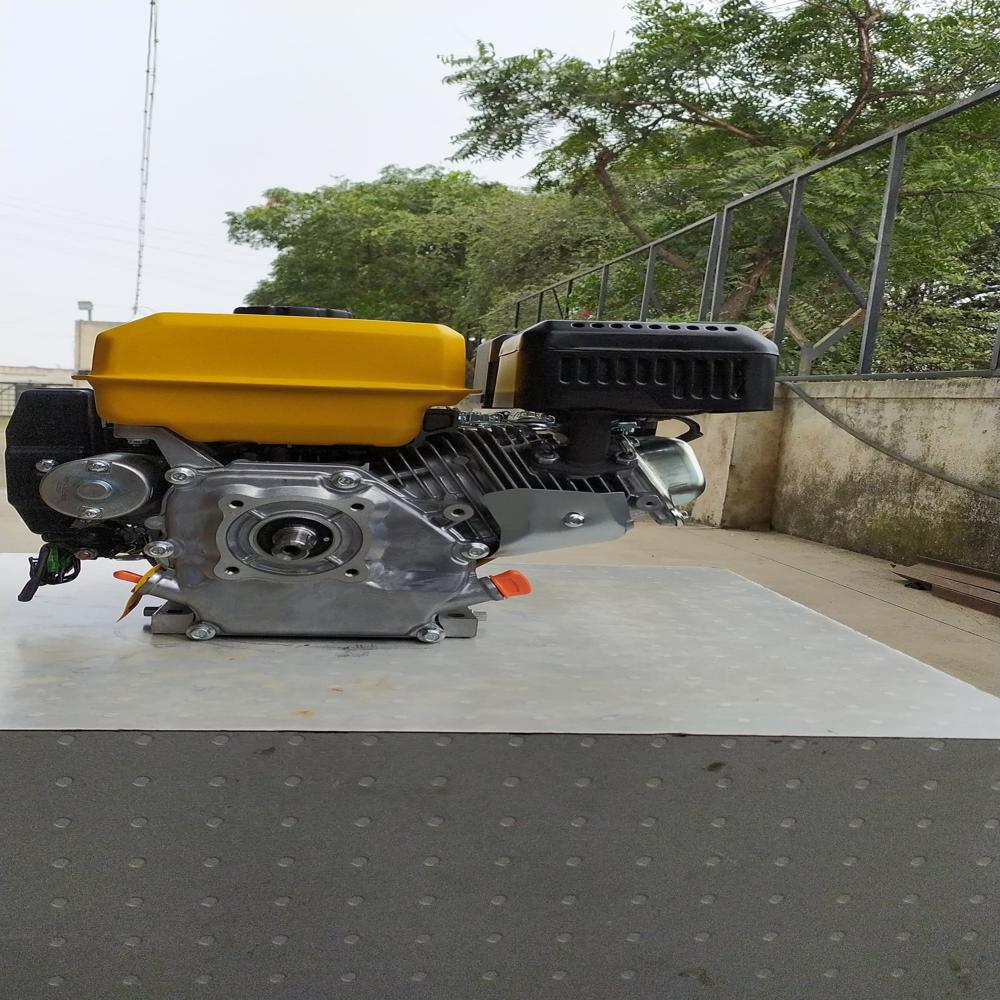

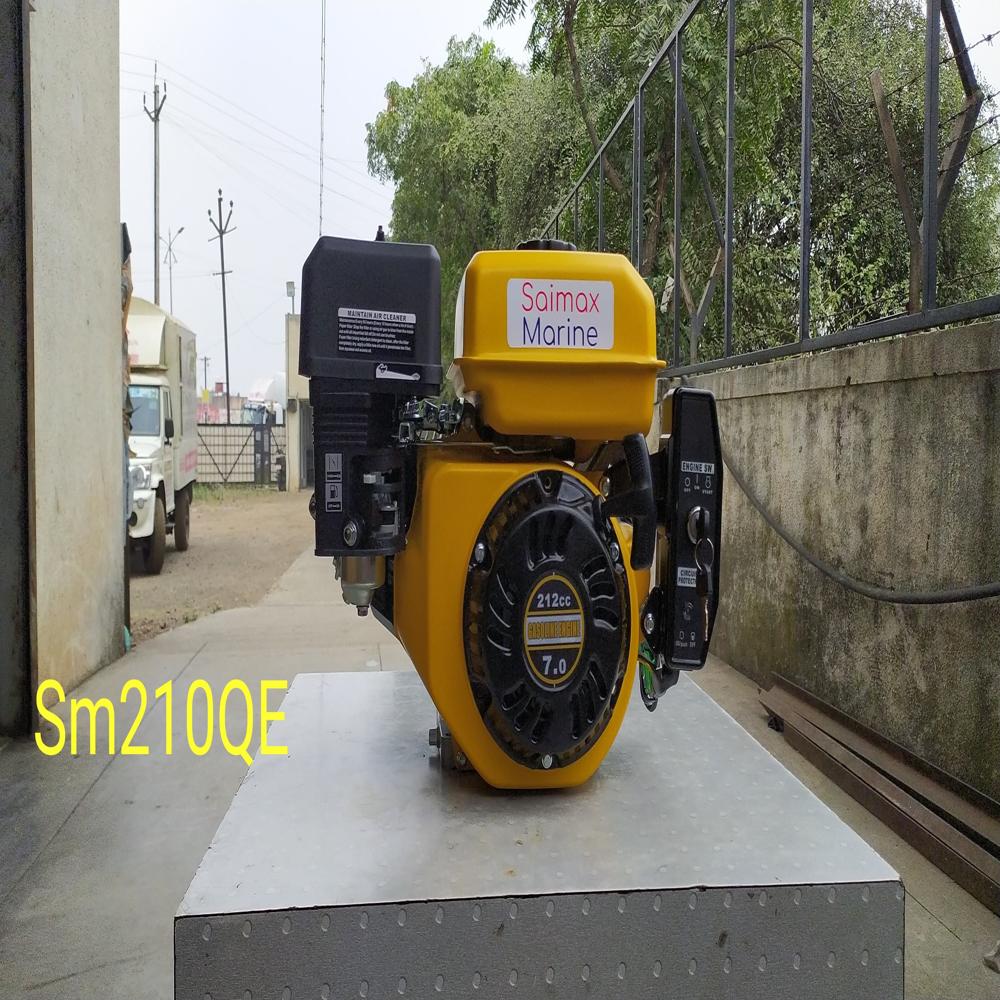

Saimax SM210QE Engine Moun

Name: Saimax SM210QE Engine Moun
Brand: SAIMAX MARINE & AGRO SOLUTIONS
Price: 19330.0 INR
Availability: InStock

Price 19330.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Saimax SM210QE Engine Moun Specification

Thread size
Standard

Other Features
Low Fuel Consumption, Durable Design, Easy Start

Fuel Type
Petrol/Gasoline

Finish Type
Powder Coated Paint Finish

Mounting Type
Horizontal Shaft

Mount Type
Base Mount

Condition
New

Engine Type
Single Cylinder, 4-stroke, Air-cooled, OHV

Usage
Marine and Utility Applications

Frequency
50-60 Hz (based on application)

Cooling System
Air Cooled

Outlet Diameter
Standard Size (as per outlet requirement)

Power Output
7.0 HP (5.15 kW)

Inner Diameter
Standard Size

Thickness
Robust Casing

Automation Grade
Semi-Automatic/Manual Start

Material Grade
Industrial Grade

Lubrication Type
Splash Lubrication

RPM
3600 RPM

Load Capacity
Suitable for 7 HP Workload

Efficiency
High Efficiency

Product Type
Petrol Engine

Parts Name
Engine Mount

Material
High Grade Alloy/Metal

Application
Marine, Industrial, Agriculture, Pumps, Generators

OE Number
SM210QE

Size
Standard as per model

Dimensions
Compact, Portable Design

Weight
Approx 15-20 kg

Power
7.0 HP

Stroke
4 Stroke

Head
OHV (Over Head Valve)

Max Torque
12.4 Nm at 2500 RPM

Displacement
212cc

Color
Yellow/Black

Safety Features
Automatic Low Oil Shutdown

Compatible Accessories
Suitable for Generators, Water Pumps, Tiller, Go-Karts, Marine Use

Noise Level
Low Operating Noise

Fuel Tank Capacity
3.6 Liters

Starting System
Recoil/Manual Pull Start

Exhaust Emission
Low Emission

Ignition System
Transistorized Magneto Ignition

Saimax SM210QE Engine Moun Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
2 Days

Saimax SM210QE Engine Moun About

Fuel Type	Petrol
Power Rating	7HP
Number Of Cylinders	single
Cooling	Air Cooled
Displacement	212ml
Power	5 kw
Cooling System	Air Cooled
Application	Generator, milking machine
Starting System	Electric start
Brand	saimax
Engine Speed	3600 rpm
Engine Type	single cylinder , 4 - strok(OHV)
Fuel Tank Capacity	3.60l
Governor System	centrifugal mechanical
Gross Weight	16.5 k g
Model Name/Number	SM 210 QE
Type	ohv
Net Power Output	4.4 kw/3600rpm
Bore x Stroke	70 x 55
Net Torque	12 n.m /2500rpm
Dimensions	390 x320 x 345 mm
Oil Capacity	550ml
RPM	3600
View in Hindi	210 QE

saimax engine 210 QE

Electric start
212cc
3600RPm
oil capicity - 550 ml
avarege-1.7 ltr
fuel tank capicity -3.60ml

Powerful Performance

Designed with a 212cc displacement and a maximum torque of 12.4 Nm, the Saimax SM210QE Engine Mount provides reliable and consistent power output for demanding tasks. Its 7.0 HP engine ensures optimal functionality for a variety of applications, including marine, agricultural, and industrial use.

Engineered for Durability

Built from high-grade industrial alloy and equipped with a powder-coated paint finish, this engine mount stands up to tough environments. Its robust casing and advanced cooling system prolong engine life, while the automatic low oil shutdown feature offers additional protection and safety.

Versatile Applications

The Saimax SM210QE is compatible with an array of accessories and systems. Its horizontal shaft design makes it suitable for marine engines, tillers, water pumps, generators, and go-karts, catering to both professional and recreational needs.

FAQ's of Saimax SM210QE Engine Moun:

Q: How do I start the Saimax SM210QE Engine Mount?

A: The engine uses a recoil/manual pull start system, allowing you to start the engine by pulling the starter cord firmly. Ensure the fuel tank is filled with petrol, the ignition is switched on, and you follow the recommended start-up procedure for reliable ignition.

Q: What are the main benefits of using the SM210QE Engine Mount in industrial and marine applications?

A: Key benefits include its high efficiency, low operating noise, durable build, and low fuel consumption. The engine's automatic low oil shutdown feature enhances operational safety, making it highly suitable for demanding industrial, marine, and utility roles.

Q: When should I perform maintenance on this engine mount?

A: Regular maintenance should be performed according to usage frequency, typically every 25-50 hours of operation. Always check oil levels before use and attend to routine checks on air filters, spark plugs, and fuel systems to ensure longevity and optimal performance.

Q: Where can this engine mount be installed and used effectively?

A: The Saimax SM210QE is designed for flexibility and can be installed in generators, water pumps, tillers, go-karts, and marine engines. Its compact and portable design allows for easy integration into various machines used in agriculture, industry, and marine environments.

Q: What process should I follow for safe operation?

A: Before starting, ensure proper installation on a stable base mount and check oil and fuel levels. Use the manual pull start as per instructions and monitor for any warning indicators, such as low oil, to prevent damage during use. Always adhere to safety guidelines provided in the user manual.

Q: How does the cooling system work on this engine mount?

A: The SM210QE uses an air-cooled system, which dissipates heat efficiently during operation. This ensures the engine maintains optimal temperature, reducing wear and extending the engine's service life, especially during continuous or heavy-duty use.
